- Remote controllable audio work places via Internet/Ethernet/CobraNet
- Reporter desk for standalone and/or network application
- Two fader remotes available (4 or 8 faders)
- Small edit suites
- Digital Desktop mixer
- Mobile applications
- Ideal for Production, Voice tracking and On-AIR
- CRM, Announcer and Phone outputs
- Bi directional Cue communication buss
- One knob Compressor per channel
- Cleanfeed outputs for external Hybrids
- Separate I/O unit
Your personal radio control center

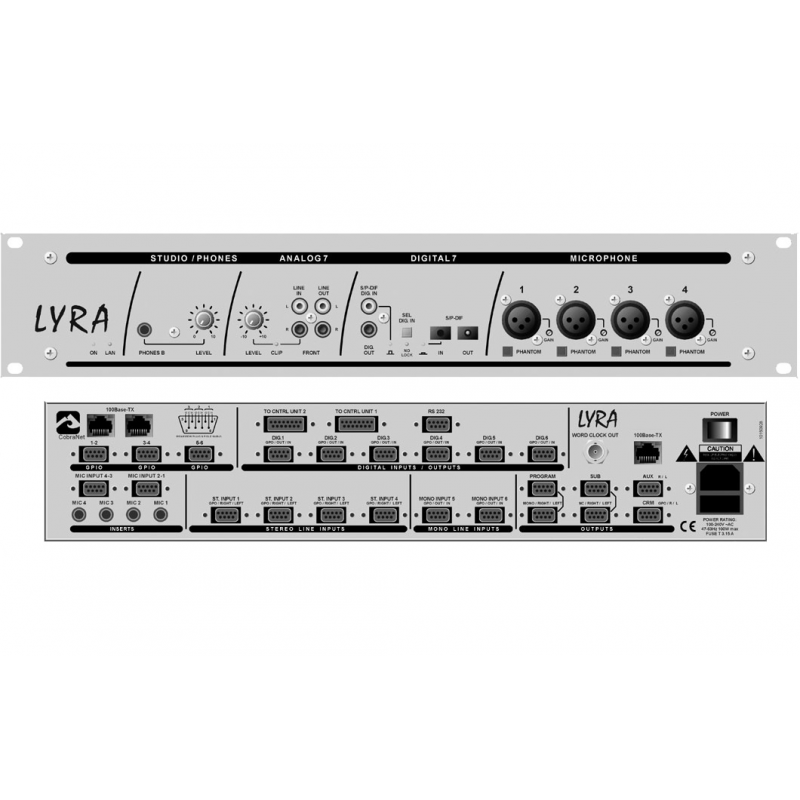

The Lyra is a fully digital desktop mixer using the latest, state of the art, digital technology housed in an ‘easy to use’ and ‘versatile’ mixing console surface. The Lyra is based on two sophisticated systems: 1) a large matrix/router and, 2) a very powerful DSP engine. This combination makes the Lyra an extremely flexible and powerful audio tool.
A value added feature to this clever digital machine is the capability to control and administrate it from any location on this globe. An Internet connection and your own internet browser is all that is needed for remote service/control.
Audio-networking is (by way of an optional CobraNet® card) the solution to even further enlarge your audio matrix. This option makes you compatible with many other audio manufacturers to receive, transmit and share audio from different locations in your LAN.
All these functions are packaged in a very compact 2HE rack unit. These extensive possibilities can be controlled from an easy to understand 4 fader desktop control surface.
A second 4 fader control surface can be connected to give 8 stereo modules. Yiou c an also opt for an 8 fader control surface. ROUTING & MIXING
The DSP/Mixer contains 8 stereo modules. Each module features gain, three bands of clean/clear EQ, one smart knob compressor and routing to Program, Sub, Aux, and Clean feed 1 & 2 busses. Each buss has a fixed analogue output. This channel functionality resultsin a complete 8 module mixer with very compact size. The Lyra has a large matrix onboard, 34 (6x mono and 28x stereo) Inputs addressable to 25 Outputs (25x stereo). You can configure the matrix anyway you want via the web server. The matrix allows you to create inserts on input and output signals.
