Mini video web mixer
- 4 HDMI inputs
- 1 USB webcam output
- 1 HDMI output
- Intuitive use
- Enables live streaming of multi-camera productions online via services and software
- such as YouTube and Skype
- Integrated DVE for picture-in-picture effects
- Quality transition
- Upstream and downstream incrustations
More info

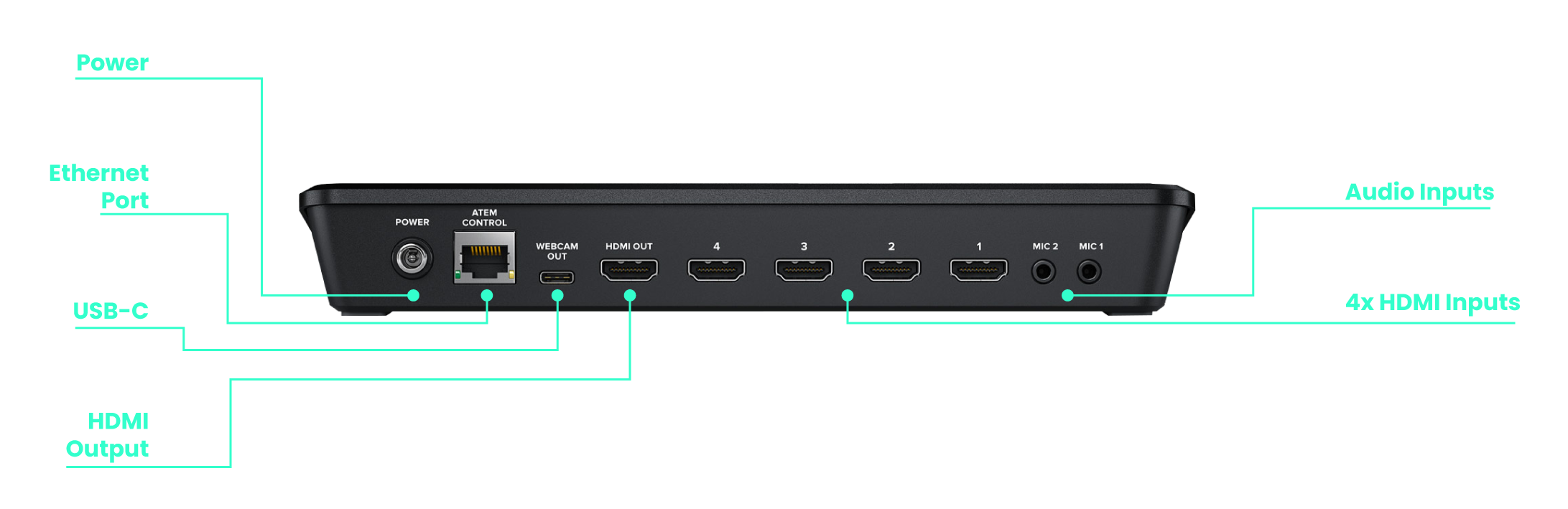

The mini video web mixer has 4 HDMI inputs and has an intuitive and easy to use design that allows anyone to live stream multi-camera productions online through services and software such as YouTube Facebook Live or even Skype. Simply connect 4 high quality HDMI inputs which can be used for live switching cameras, computers or even game consoles. You get a built-in DVE for exciting picture-in-picture effects, broadcast quality transitions, upstream keying to remove the blue and green screen background, downstream keying to overlay custom graphics, audio inputs, mixer, etc.
For streaming, it also has a USB output that works like a webcam, so you can connect to any video software. There is also an HDMI video output for projectors.
For streaming, it also has a USB output that works like a webcam, so you can connect to any video software. There is also an HDMI video output for projectors.
SPECIFICATIONS
| CONNECTIONS | |
| Power source | 1 x 12V external power supply |
| Energy consumption | 30 W |
| Total number of video inputs | 4 |
| Total outputs | 2 |
| Total number of auxiliary outputs | 1 |
| Total number of audio inputs | 2 x 3.5mm stereo mini-jack |
| Total audio outputs | None, built-in audio onlyt |
| Timecode connection | Nothing |
| HDMI video inputs | 4x HDMI Type A, 10-bit HD switchable. Integrated 2-channel audio. |
| Video input synchronization | On the 4 HDMI inputs |
| Frame rate and format converters | On the 4 HDMI inputs |
| HDMI program outputs | 1 |
| Computer interface | 1 x USB Type-C 2.0 for webcam output, software control, software updates, and panel connection. |
| HD video input standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| HD video output standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video broadcast standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD video standards | Rien |
| Video sampling | 4: 2: 2 YUV |
| Color accuracy | 10 bits |
| Color space | Rec 709 |
| HDMI input resolutions from computers | 1 280 x 720p 50 Hz, 59,94 Hz et 60Hz 1920 x 1080p 23,98, 24, 25, 29,97, 30, 50, 59,94 et 60 Hz 1 920 x 1 080i 50, 59,94 Hz et 60Hz |
| Color space conversion | Matériel en temps réel. |
| Operating temperature | 5° à 40° C |
| Storage temperature | -10° à 60°C |
| Relative humidity | 0% à 90% sans condensation |
| Dimensions | H= 1.38 in L= 9.35in P= 4.07in |
| Weight | 0,54 Kg |
TECHNICALS SPECIFICATIONS
| Upstream keyers | 1 |
| Downstream keyers | 1 |
| Advanced chroma keyer | 1 |
| Linear / luma keyers | 2 |
| Transition keyers | DVE Only |
| Total number of layers | 5 |
| Pattern generators | 1 |
| Color generators | 2 |
| DVE with borders and drop shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768 |
| AUDIO | |
| Audio mixer |
Mixer 6 inputs x 2 channels. |
| Analog input | Asymmetric stereo |
| Analog input delay | Up to 8 images |
| Max input impedance | 1,8k |
| Max input level | + 6 dBV |
| Micro Plug In Power | Available on both 3.5mm mini-jack connections. |
| LECTEUR MULTIMÉDIA | |
| Media players | 1 |
| Channel | Fill in and enter for each media player. |
| Still image capacity of the media pool | 20 with filling and key. |
| Still image format of the media pool | PNG, TGA, BMP, GIF, JPEG et TIFF. |
